Are you a Do-It-Yourself kind of person? Do you take pride in doing things yourself even if you make mistakes the first time?

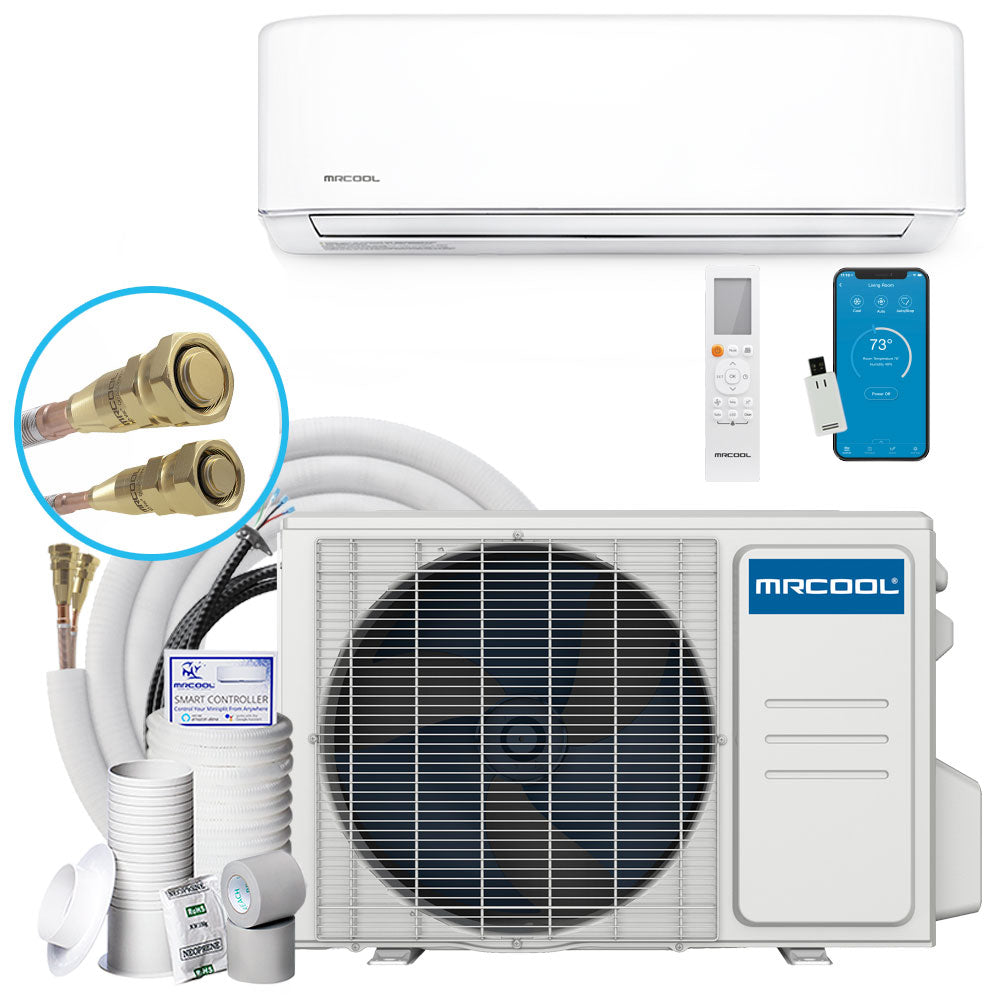

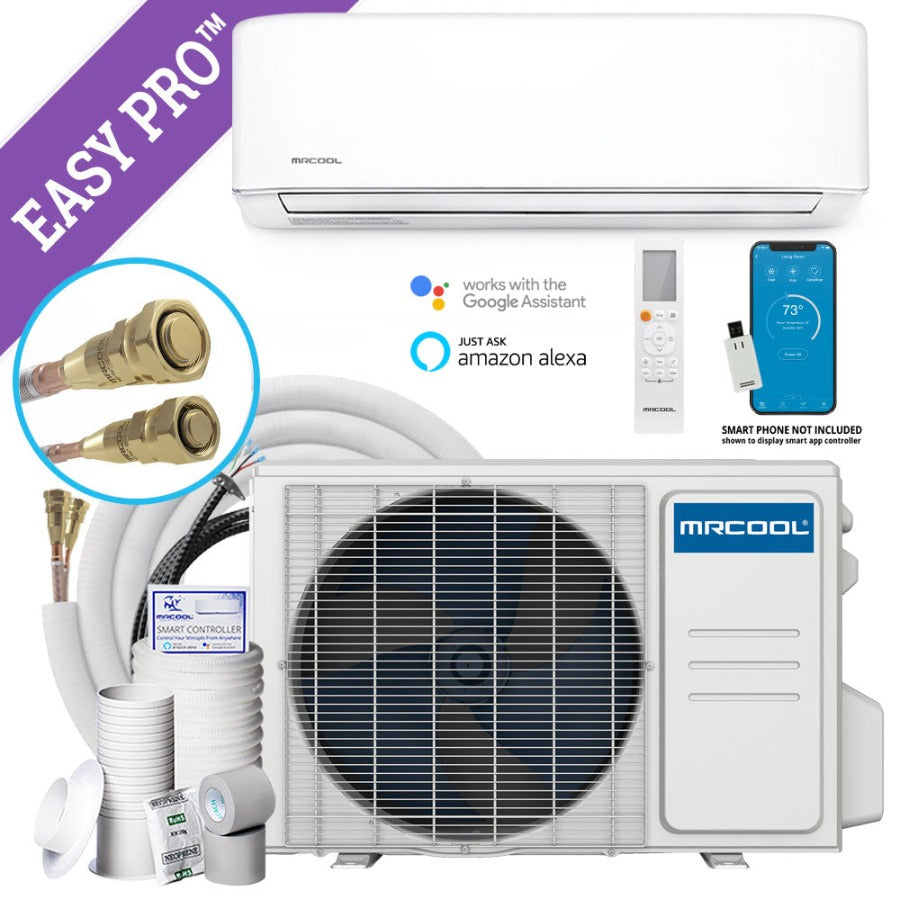

Then the MRCOOL DIY Easy Pro 9k BTU Single-Zone Ductless Heat Pump Condenser with 9k Wall Mount Air Handler Combo Unit is for you.
The MRCOOL DIY Easy Pro 9K BTU Single-Zone Ductless Heat Pump Condenser comes with the latest in heat pump technology.
This unit is capable of producing an impressive 20 SEER efficiency rating.
The unit also has the ability to heat even when temperatures drop to 5°F.
It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements.
Systems include the MRCOOL SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices.
Works with Amazon Alexa. Works with Google Assistant and Quiet Running
As an MRCOOL DIY product, this heat pump is designed specifically to be used with MRCOOL’s patented Pre-Charged Quick Connect Line Sets.
The line sets come pre-charged with the precise amount of R-410A refrigerant.
They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches.
This means the installation process can be performed without retaining the services of a certified technician.
This DIY mini-split AC and heat pump combo unit is easy to install and comes with operating modes and smart features to guarantee efficient all-season cooling and heat comfort in your home.

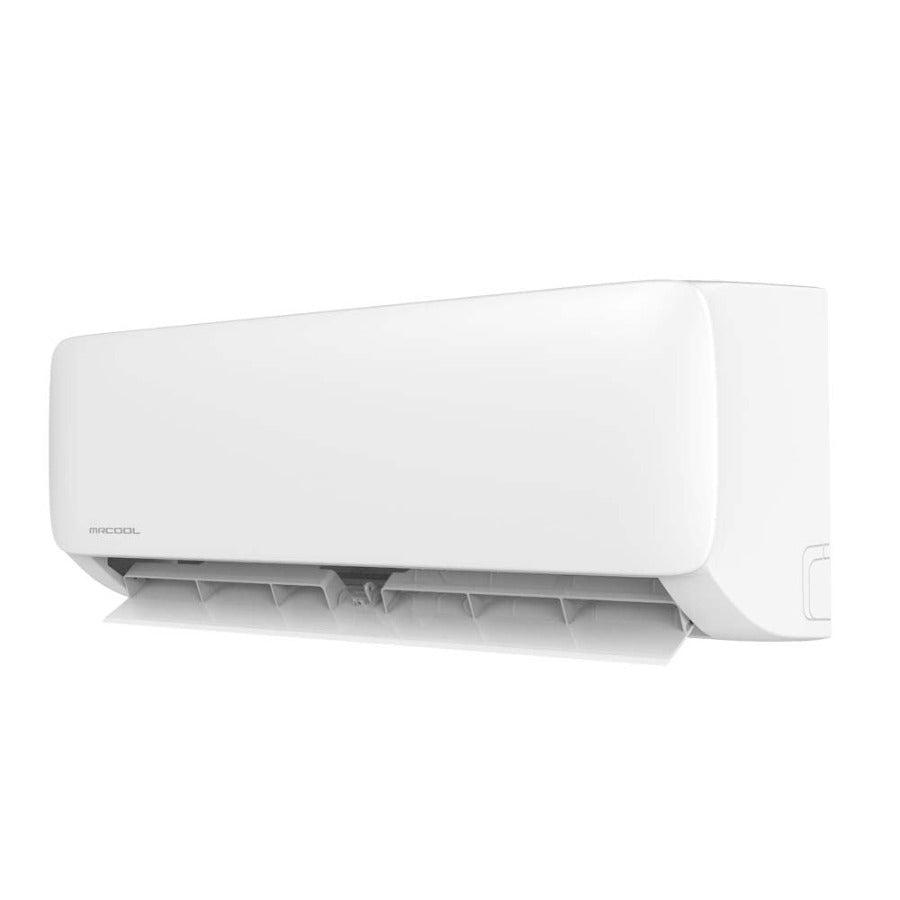

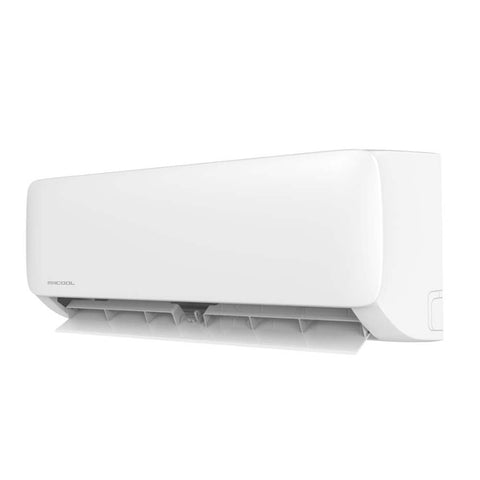

The 9k Wall Mount Air Handler is designed to deliver the best cooling and heating experience for small to medium size rooms up to 300 square ft.
With the brochure and operating manual that comes with this unit, you will be amazed how simple it is to install the MRCOOL DIY 9k BTU Single-Zone Ductless Heat Pump Condenser Combo if you follow the instructions step by step.
It is quite flexible enough to be installed virtually anywhere without requiring specialized tools or complicated and expensive equipment.
This MRCOOL DIY 9k BTU Single-Zone Mini Split Ductless Heat Pump Condenser with 9k Wall Mount Air Handler Combo includes the 9,000 BTU Outdoor Heat Pump condenser model EZPRO-09-HP-C-11516, one 9k BTU Indoor Wall Mount Air Handler model EZPRO-09-HP-WMAH-115, a pre-charged Line Set with control wire and the Remote Control.
The MRCOOL SmartHVAC app is user-friendly and compatible with Amazon Alexa and Google assistant.
This enables you control your DIY Mini Split Unit from anywhere there is an internet connection through your Apple or Android smart device.
You certainly will not regret your purchase as the MRCOOL DIY 9k BTU Easy Pro Single-Zone Ductless Heat Pump Condenser is the solution to your home’s heating and cooling needs.
Product Features:
The unit comes with some unbeatable features created to the delight of DIYers. These features include:
-
Low ambient cooling down to 5°F
-
MRCOOL SmartHVAC App enables you to control your DIY unit from anywhere with your Apple or Android smart device and an Internet connection
-
Easy Pre-charged R-410A 16ft/25ft/35ft/50ft Quick-Connect
-
It comes with an inbuilt alarm system to detect leakage of coolant.
-
R-410A environmentally friendly refrigerant
-
Variable speed DC inverter compressor technology for cost-saving.
-
Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
-
1-year compressor/2-year parts warranty; register for limited lifetime compressor warranty.
-
The Auto restart function ensures you never have to worry about any sudden power outage. The unit will automatically restart and continue running like it never went off.
-
Energy Efficient DC Inverter
- Louver position memory automatically moves to the same position you set the last time the unit was turned on so you don’t have to do it all over again.
Additional Benefits
- With the MRCOOL DIY 9k BTU Single-Zone Mini Split Ductless Heat Pump Condenser with 9k Wall Mount Air Handler, you do not have to worry about some bulky ducting. A small hole, through which you can pass your cables, copper tubing and drain pipe is all you need.
- You do not need to create a humongous hole on your wall unlike some traditional window unit. This is simply neat, simple and tidy looking as much as it is efficient in performance.
- Each package includes an indoor air-handling evaporator unit and an outdoor condenser unit.
- The unit comes at an unbeatable authorized dealer price from us.
- MRCOOL DIY 9k BTU Single-Zone Ductless Heat Pump Condenser with 9k Wall Mount Air Handler is perfect for a single-zone small to medium spaces (up to 300 square feet) without requiring ductwork.
- The high efficiency of the unit will help to lower your monthly energy bills.
- The Wall Mount Air Handlers are also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Refrigerant leakage detection ensures your system remains operating efficiently without degradation due to undetected corrosion.
- The Smart HVAC remote that comes with the unit can be installed easily to most interior walls with the included mounting plate.
- An aspect of heat pump installation that frustrates most people is handling the refrigerant inside the coil. But thus unit comes with a pre-charged line sets that solves that problem.
- One of the outstanding benefits of the MRCOOL DIY Easy Pro 9k BTU Single-Zone Mini Split Ductless Heat Pump Condenser with 9k Wall Mount Air Handler Combo unit is that it can heat, cool and dry
DIY Installation Guide (WATCH VIDEO)
Product Specification:
Model/SKU | EZPRO-09-HP-11516 |
---|---|
Ave Coverage Area | 300 sf/room |
Cooling Capacity (BTU) | 9,000 |
SEER |
20 |
EER | 11.5 |
HSPF-4 |
10.3 |
Zones | 1 |
Region Compatibility | Nationwide |
Recommended Usage Area |
Small to medium-size rooms. |
OUTDOOR UNIT SPECIFICATIONS | |
Heating Capacity | 10,000 BTU |
Cooling Capacity | 9,000 BTU |
Electrical Phase | 1 Phase |
Line set Connection | Quick-Connect |
Liquid Line Size | 1/4 in (3/8 w/ adapter) |
Maximum Fuse Breaker | 30 amps |
Minimum Circuit Ampacity | 20 amps |
Voltage | 115 V |
Warranty | 2 years parts, 1 year compressor |
Condenser depth | 10.63 in |
Condenser Height | 19.49 in |
Condenser width | 28.35 in |
Condenser weight | 54.45 lbs |
INDOOR UNIT SPECIFICATIONS (AIR HANDLER) | |
Airflow Direction | 4- Way |
Configuration | Wall Mount |
Blower Motor Speeds | 3 |
Air Handler Depth | 7.87 in |
Air Handler Height | 11.50 in |
Air Handler Width | 28.70 in |
Air Handler Weight | 17.64 lbs |
Filter Type | Washable |
DOWNLOAD ADDITIONAL RESOURCES | |
INSTALL / OWNER MANUAL | |
BROCHURE | |
REMOTE MANUAL |
|
PRODUCT WARRANTY |
